Economic turbulence and increasing market demand pose the global supply chain in the face of new challenges.
In order to ensure a stable supply of the products and maintain the usual levels of performance and quality, BRP-Rotax invested in the production of its own cylinder production plant for the Rotax MAX engine family.
The Rotax Plasma cylinders are equipped with a special plasma coating, a technology that BRP-Rotax has already successfully employed in other product lines and which is also used in the highest categories of motor racing.
It has been decided to transfer the production of cylinders to Austria and, in this context, to renew the casting moulds and machining tools for all cylinders of the Rotax-MAX engine family.
For customers wishing to upgrade their engine with the Rotax-Plasma cylinder, BRP-Rotax offers a special price launch.
The offer is valid until 30 May 2027.
In addition, a new evo piston and a new evo elastic band are also produced.
For pistons and elastic bands there is no offer of permutation.

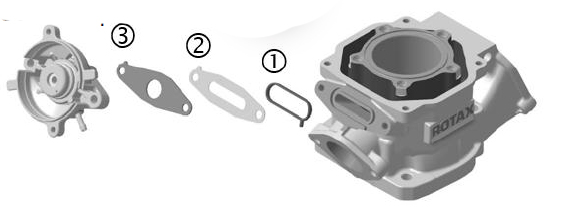

New Rotax Plasma cylinders
Technical data:
• Rotax Plasma cylinders are 100% interchangeable with previous cylinders.
• The cylinder is supplied in two tolerance groups:
(measured at 24 mm from top)
A: 54,000 – 54,009 mm, AB: 54,010 – 54,015 mm
• Thanks to production directly at Rotax, better quality and uniformity control is possible.
• The performance is identical to those of the previous cylinders in Junior and Max categories.
• In the Micro and Mini categories, the cylinders meet the requirements of the FIA that impose a reduction of the power.
• The new cylinders bear the brand ROTAX (no more Rotax Racing)
Cylinders / engines will be available from November
Pricing
Permutation promotion up to 30.5.2027 (prices incl. VAT)
Standard
• 413574 Junior Cylinder € 587,00 € 350.–
• 413578 Rotax Max Cylinder €.616,00 € 350.–
• 450415 O-ring Plasma (1) € 6,20
• 251337 Plasma protection plate (2) € 3,50
• 250230 Plasma Gasket (3) € 3,60
New Rotax evo pistons
Technical data:
• Cast iron rods with coating, same technical configuration as standard pistons.
• Reduced tolerance for the piston diameter (+/- 0.010 mm compared to +/- 0.015 mm)
• Reduced tolerance for the angle between the pin and the squish slot, lower shock from left to right
• Same weight
• Duration
• Provided with different packaging

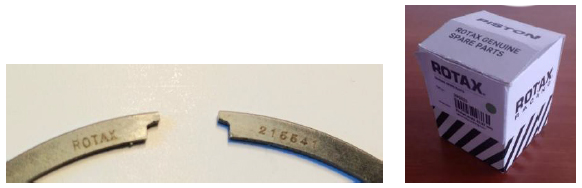

• Piston ring with writing «»
• The new piston and piston ring can be replaced 1:1 with the piston and the series ring.
• Pistons will be available from November
Please note
• The current pistons and rings are available until stocks are exhausted and will be replaced by the new Evo pistons
Pricing (VAT)
• 295516 Piston 53,92 Orange 114,00
• 295517 Piston 53,93 White 114,00
• 295518 Piston 53,94 Black 114,00
• 295519 Piston 53,95 blue 114,00
• 295521 Piston 53,96 red 114,00
• 295523 Piston 53,97 Green 114,00
• 295529 Piston 53,98 yellow 114,00
• 215541 Egg seal ring 41,50
Regulation
Any differences with respect to the international regulation will be communicated promptly.
